Spring Support And Hanger

Zhiang Spring Support Hanger is an important industrial equipment, used to support and hang pipe, conduit and other equipment. Made up of springs, support rods and suspension rods, it has stable support and suspension functions which relieves the weight of pipes and equipment,so that ensures the safety and stability of pipes and equipment during operation.

Advantages

1. Flexibility and tunability: suitable for a wide variety of piping and equipment,and flexible to meet the needs of different engineering projects;

2. Good vibration reduction and noise isolation: can effectively reduce the vibration and noise produced during the operation of pipelines and equipment;

3. Energy efficiency: it replaces the previous use of steel to prop up pipelines,and saves coal, electricity costs, and reduces carbon dioxide emissions at the source;

4. Easy to install, reducing the difficulty of construction.

Classification

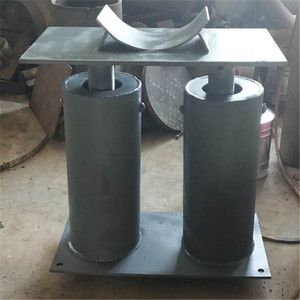

1.According to the structure:single-point spring support hanger and multi-point spring support hanger.

2.According to function: fixed spring support hanger and guide spring support hanger.

3.According to the bearing capacity: the bearing capacity of spring support hanger is related to the material and structure of spring.

Customization

According to different requirements, we can provide customized spring support hangers with various materials, sizes, colors and loads.

Why Choose Zhiang's Spring Pipe Support?

Unmatched Durability: Crafted from premium materials, our spring pipe supports are built to withstand the test of time, ensuring a long-lasting solution for your plumbing needs.
Enhanced Flexibility: The spring mechanism allows for easy expansion and contraction, accommodating changes in pipe length due to temperature fluctuations without compromising stability.
Customizable Solutions: We understand that every project is unique. Our team of experts will work closely with you to tailor the perfect support system for your specific requirements.
Easy Installation: With user-friendly design features, our spring pipe supports can be easily installed, saving you time and labor costs.
Comprehensive Range: From small residential projects to large industrial applications, we have a diverse range of spring pipe supports to suit all scales of operation.

Load Capacity

Spring support hangers are categorized based on their load-bearing capacity, which determines their suitability for different applications:

• Light-Duty: Designed for small-diameter pipes, HVAC systems, and minor structural components. Typically used in residential or small-scale commercial applications.
• Medium-Duty: Suitable for moderate loads in industrial settings, such as power plants, oil refineries, and chemical processing units.
• Heavy-Duty: Engineered to support large-diameter pipes and heavy equipment in industries such as petrochemicals, marine, and energy sectors. These hangers must withstand high loads and extreme operating conditions.

The load capacity is usually measured in kilograms (kg) or pounds (lbs), and buyers must select the appropriate category based on their project’s requirements.

Material

The material composition of spring support hangers determines their durability, corrosion resistance, and suitability for different environments:

• Carbon Steel: Cost-effective and strong, making it ideal for general industrial applications. Often coated or painted to resist corrosion.
• Stainless Steel (304, 316): High corrosion resistance, suitable for humid and marine environments. Ideal for food processing, pharmaceutical, and offshore applications.
• Galvanized Steel: Features a protective zinc coating that enhances corrosion resistance. Commonly used in outdoor installations and environments with moderate exposure to moisture.

Material selection is critical for ensuring the longevity and performance of the hangers under different environmental conditions.

Spring Type

Spring support hangers come in different spring mechanisms to accommodate various movement and load conditions:

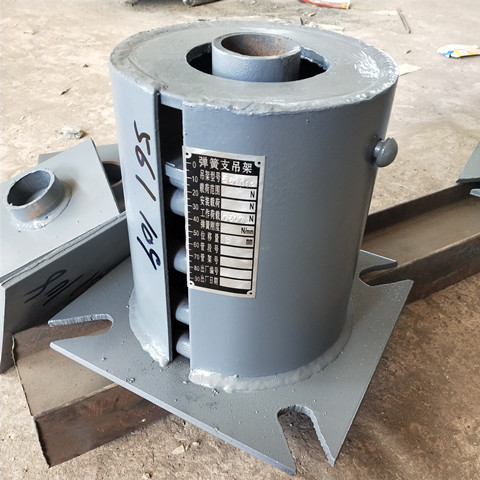

• Variable Spring Hangers: Designed to accommodate vertical movement while adjusting the load distribution. Commonly used in pipelines and equipment that expand or contract due to temperature changes. Features a calibrated spring mechanism that provides variable support.

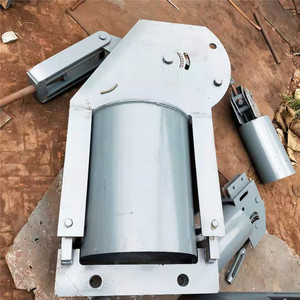

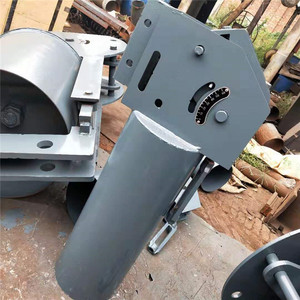

• Constant Spring Hangers: Maintain a uniform load distribution regardless of movement or displacement. Suitable for applications where significant thermal expansion occurs, such as high-temperature piping in power plants. Uses a specially designed internal mechanism to ensure consistent force application.

Knowledge Expansion

The design principle of spring support hanger is based on spring elastic deformation. Spring is a kind of elastic metal material, can produce elastic deformation under the action of external force, can be restored to its original shape after elimination of external force. By installing a spring between the support rod and the suspension rod, the elastic characteristics of the spring can be used to support and suspend the weight of pipe and equipment. When pipes and equipment are subjected to external forces, springs become elastic deformation, absorbing and dispersing external forces, thus reducing the pressure on the structure. When external forces disappear, springs revert to their original shape, maintaining the stability of the system.
