Heat Insulation Pipe Bracket

Zhiang heat insulation pipe bracket is a device used to protect and insulate pipes. It is usually made of metal or plastic which has good thermal insulation properties. The main function of heat insulation pipe bracket is to reduce the heat transfer loss of pipeline, to prevent heat loss and energy waste.

Application

1.Industrial field: used in petrochemical plant, electric power plant, pharmaceutical and food processing industries;

2.Construction field: used to protect heating and cooling piping systems to improve energy efficiency;

3. Aerospace field: used to protect the fuel pipelines of airplanes or rockets to ensure  normal operation and safety.

Advantages

1. Simple structure and reasonable design;

2. Flexible, convenient, mountable;

3. High durability and easy to maintain;

4. Wide range of applications;

5. New heat-insulating pipe supports that are both environmental friendly and cost-effective;

6. Employing a firm micro-porous calcium silicate material, tackling typical issues like the ordinary heat insulation pipe brackets’ low compression and fold resistance,results in a fixed plate relaxation malfunction, causes displacement between pipe brackets and pipes.

Customization

According to different requirements, we can provide heat-insulating pipe brackets with various materials, sizes and colors.

Knowledge Expansion

The insulation tower plate is designed so that it forms a protective layer around the pipe, preventing heat loss caused by heat conduction and radiation. It usually consists of two semicircular scaffolds that can be easily mounted on a pipe. These insulation panels are spaced apart to ensure the insulation material can be filled. Insulation is usually a highly efficient insulating material, such as polyurethane foam or fiberglass. These materials have good thermal insulation and can effectively minimize heat conduction and heat dissipation.

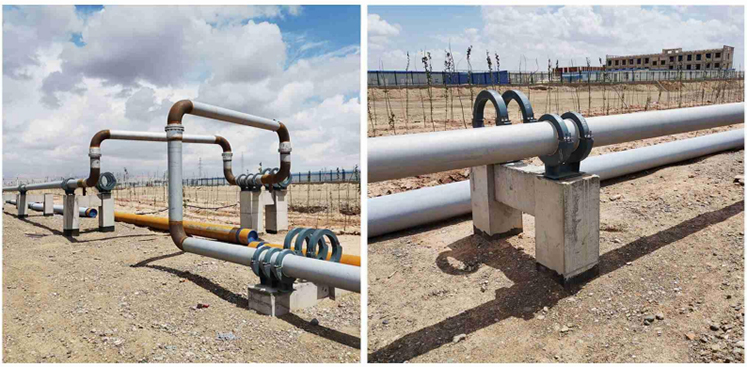

On-site construction drawings
